Video minh họa Van trộn điều khiển điện nối bích

Van trộn điều khiển điện nối bích

Thông số kỹ thuật
  • THÔNG SỐ KỸ THUẬT

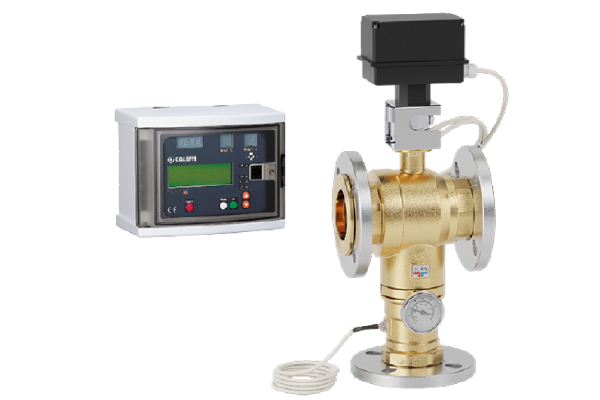

  • Electronic mixing valve with programmable thermal disinfection and check on disinfection. Flanged connections. Consisting of:
  • - three-way ball valve,
  • - actuator,
  • - regulator,
  • - flow temperature probe,
  • - return temperature probe.
  • With auxiliary microswitches for disinfection management and other devices.
  • Fitted for a monitoring and remote control connection.
  • Supply: 230 V - 50/60 Hz - (6,5+10,5) VA.
  • Adjustment temperature range: 20–85°C.
  • Disinfection temperature range: 40–85°C.
  • To be coupled with flat counterflanges EN 1092-1, PN 16.
  • Max. working pressure: 10 bar.
  • Max. inlet temperature: 100°C.
  • Protection class: IP 65 (actuator).
  • Size
